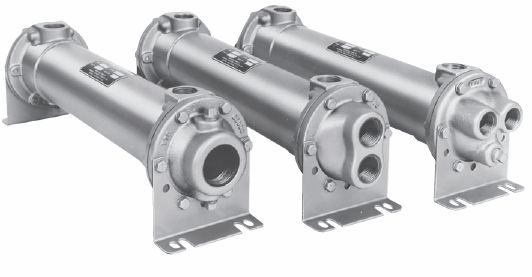

B Series

Thermal Transfer Heat Exchangers:

Shell & Tube Heat Exchangers



Features:



Copper & Steel Construction
  Optional Non-Ferrous Construction
  Competitively Priced
  1/4” or 3/8” Tubes Standard
  Water to Water Applications
  Sea Water Applications
  Optional 90/10 Copper Nickel Cooling
Tubes and Bronze End Bonnets for Sea
Water Service
  NPT, SAE O-Ring, SAE Flange, or BSPP
Shell Side Connections Available
  End Bonnets Removable for Servicing
  Mounting Feet Included (May be
Rotated in 90° Increments)



Ratings:

  Maximum Shell Pressure: 250 psi
  Maximum Tube Side Pressure 150 psi
  Maximum Temperature 350° F



Materials:

  Tubes Copper
  Hubs & Tubesheets Steel or Brass
  Shell Steel or Brass
  Baffles Brass
  End Bonnets Cast Iron
  Mounting Brackets Steel
  Gaskets Nitrile Rubber/Cellulose Fiber
  Nameplate Aluminum Foil

B Series

- PDF DATASHEET


Quotes & Ordering Information: Thermal Transfer B Series, please contact us: 1-888-226-8522
